What is Z-belt conveyor? Structure, Application and Quotation
Z-belt conveyor, with its special structure and diverse applications, has become an indispensable equipment in many modern production lines.
There are many different types of conveyors on the market. They all seem to be suited to different purposes and handle different materials. If you want to maximize your business potential, you will want to know the differences between all the different types. To help you get started, here is what you need to know about Z-belt conveyors and their benefits.
What is a Z-belt conveyor?

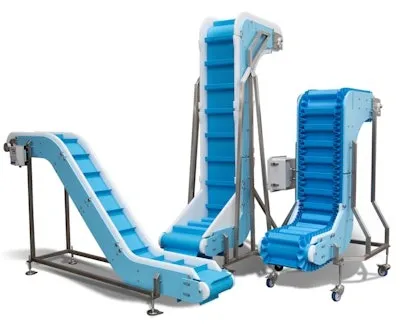

A Z-belt conveyor is a special type of conveyor. The conveyor is arranged in a Z-shape and is suitable for situations that require horizontal and inclined transportation at different heights. Z-belt conveyors can save space effectively and improve material transportation efficiency.
Basic structure of a Z-belt conveyor
- A Z-belt conveyor usually consists of an unloading device, a transmission device, a driving device, a brake, a back stopper, a tensioning device, a body, a deep groove guide device, and a tail device.
- Conveyor length: usually 1m, 2m, 3m, 4m, 6m, 10m, other sizes can be customized.
- Belt support material: carbon steel, stainless steel, aluminum profile.
- Conveyor belt: 2mm, 3mm, 5mm thick PVC conveyor belt can be used, and there are also PE, PU conveyor belt and anti-static conveyor belt.
- Wire support includes: stainless steel, aluminum profile, sprayed carbon steel, etc.
- Conveyor foot: adjustable foot, wheel;
- Skirt: optional height is 20mm, 30mm, 40mm, 50mm, 60mm, etc.
- Bar spacing: from 100mm-1000mm, other sizes can be customized.
- Conveying speed is generally: 0.1~10M/min; The speed can also be adjusted or fixed according to user needs.
Outstanding features of Z-shaped conveyor
The Z-shaped conveyor uses a "Z" shaped construction method, mainly consisting of an upper horizontal section, an inclined section and a lower horizontal section.
- Lower horizontal section: Use a low-profile intermediate frame leg to smoothly load during loading, reduce the pressure on the conveyor belt and reduce material dispersion.
- Inclined section: The inclined section uses a low-profile intermediate frame leg. When the conveyor inclination is greater than 45°, a low-profile intermediate frame leg should be used.
- Upper horizontal section: is the discharge head. According to the discharge requirements of different heights, the height of the head frame used is different, and the legs of the intermediate frame need to be suitable according to the head frame.
- It can transport materials at an angle of more than 30 degrees or even up to 90 degrees vertically. Can continuously transport materials under 500 kg and has strong adaptability to differences in the conveying environment.
- Z-type conveyor has corrugated walls and horizontal baffles, which are not easy to be scattered when transporting materials.
- Design A baffle is added in the middle to prevent products from falling during the climbing process.
Advantages of using Z-shaped conveyor
- Space optimization: The Z-shaped configuration allows for vertical movement, which is an ideal solution for facilities with limited floor space. It allows for efficient use of vertical space by transporting items between different floors.
- Versatility: Z-type conveyors can be customized to accommodate a variety of product sizes, weights, and shapes. They can handle fragile or fragile items without causing damage during transportation.
- Gentle Handling: The inclined sections of the conveyor are designed to minimize product damage or spillage, ensuring gentle and controlled product handling.
- Improved Productivity: Z-type conveyors can streamline material flow by eliminating the need for manual lifting or transferring between different heights. This increases overall productivity and reduces labor requirements.
- Hygienic Design: Z-type conveyors used in the food or pharmaceutical processing industry are often designed with hygienic features, such as easy-to-clean materials and smooth surfaces, to meet hygiene standards.
Applications of Z-type conveyors
- Used to transport bulk materials vertically or in large inclines, the conveying angle is 0-90° (preferably below 70°).
- Z-type conveyors are suitable for horizontal and inclined transport of a variety of bulk materials for manufacturing, assembly, testing, packaging, pharmaceutical logistics, etc. The unique structural design makes it difficult for materials to accumulate or tilt during transportation, ensuring the stability and safety of the transportation process.
Quotation of quality Z-shaped conveyor belts, good prices
The quotation of Z-shaped conveyor belts depends a lot on the following factors:
- Conveyor size: The length, width, and height of the conveyor belt will directly affect the amount of material needed and the installation effort.
- Conveyor material: Each type of material (stainless steel, PVC, PU, rubber) will have a different price, depending on the durability, features, and customer requirements.
- Load capacity: The volume of goods that the conveyor belt needs to transport will determine the thickness of the conveyor belt and the frame structure.
- Speed: The moving speed of the conveyor belt affects the capacity of the motor and transmission system.
- Incline: The larger the incline angle of the conveyor belt, the higher the requirements for the structure and motor.
- Special features: If the conveyor has special features such as heating, cooling, anti-static... then the price will be higher.
- Quantity: Large orders will often enjoy more preferential prices.
To receive an accurate and quick quote, you can contact Intech, which specializes in manufacturing and supplying Z-shaped conveyors with guaranteed quality at reasonable costs.
Some commonly used types of Z-shaped conveyors:
- Special Z-shaped inclined conveyors are designed to transport small-sized products, granules, powders, pellets... from low to high positions or vice versa.

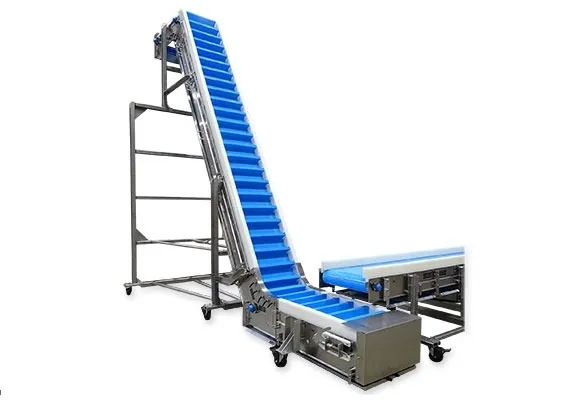

Z-shaped inclined conveyors
- Z-shaped vertical conveyors transport packaged products to shelves in manufacturing industries.

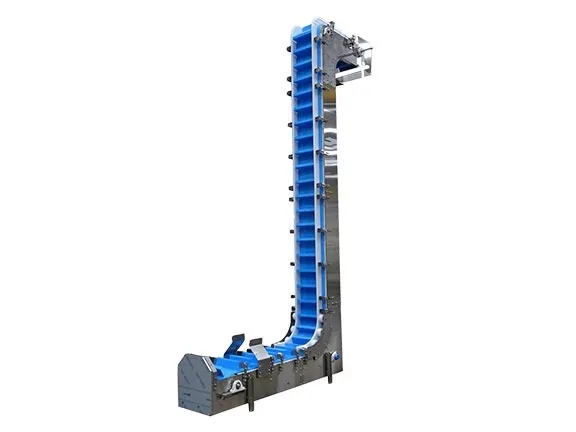

Vertical Z-belt conveyor

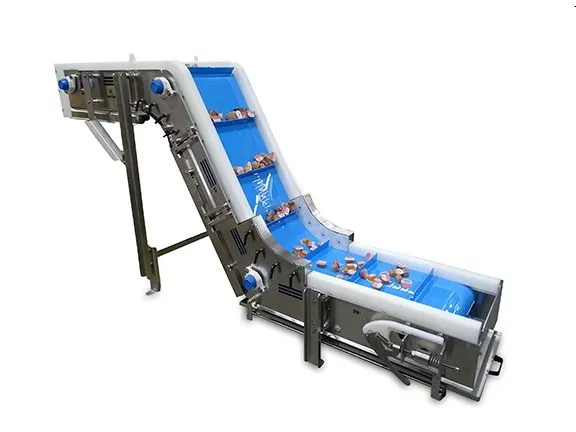

- The Z-belt conveyor is specially designed to transport materials to high or low positions along a Z-shaped path. This type of conveyor is very popular in factories, enterprises, especially in the food processing, pharmaceutical, chemical, electronic industries...
Choosing the right Z-belt conveyor will help you optimize the production process, increase productivity and reduce costs. If you have specific requirements for a certain application, please let me know so I can advise in more detail.
