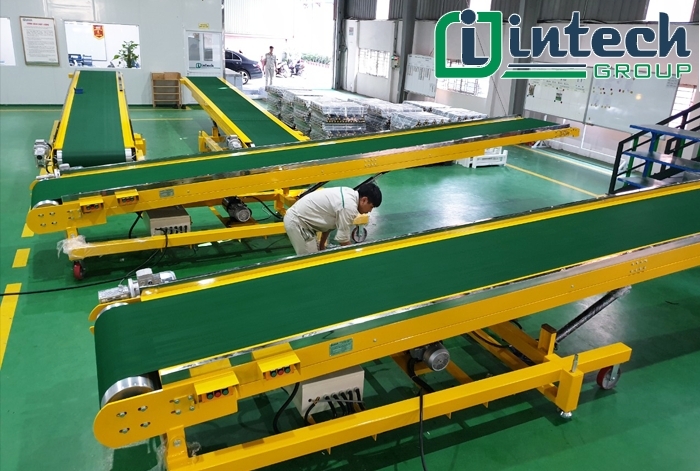

Lifting Conveyor

What is a lifting conveyor?

Operating principle:

• Horizontal transport: The motor drives the conveyor belt to move horizontally or at a fixed angle, pulling the goods.
• Lifting: The lifting mechanism (can be a hydraulic, pneumatic, mechanical system such as a screw, gear, chain, cable) changes the height or angle of inclination of part or all of the conveyor belt, thereby lifting or lowering the goods to the desired position.


Detailed specifications of the container lifting conveyor belt:

• Conveyor belt width: 300mm, 400mm, 450mm, 500mm, 600mm, 700mm, 800mm, and other customized sizes, suitable for many types of goods.
• Conveyor belt length: 2.5m, 3m, 4m, 5m, 6m, 8m, and other lengths as required, meeting all spaces and transportation needs.
• Lifting height: Flexible adjustment from 1m to 5m, and can change the height as desired, suitable for many different loading and unloading heights.
• Conveyor belt type: Use smooth or V-ribbed belt made of PVC or rubber. Thickness 8-12mm, ideal for heavy loads and lifting at high heights, ensuring durability and adhesion.
• Lifting equipment: Hand winch, motor winch control, or hydraulic control system, meeting all lifting needs.
• Load capacity: 30-100 kg/m, suitable for many different types of goods and loads.
• Motor capacity: 2.2-5.5 kw, ensuring strong and stable operation.
• Conveyor belt speed: 10-20 meters/minute, adjustable to suit the desired transport speed.
• Conveyor frame: Stainless steel or steel, ensuring durability and good load-bearing capacity.

Basic structural characteristics of the lifting conveyor:

• Conveyor frame: Stainless steel, anti-rust steel, aluminum profile, .. with good load-bearing capacity.
• Conveyor belt: rubber belt, 5mm thick PVC belt
• The height of the lowering belt can be customized
• Lifting equipment: hydraulic controller, hand winch, motor winch control.
• Conveyor belt reduction motor (pulling goods) 0.75KW.
• Control system by Inverter, PLC.
• Motor, controller: inverter, switch,..
• Belt support roller, pull roller is high quality, smooth and stable.
• The conveyor system has wheels to move from one position to another easily.
• The conveyor can be used to transfer both goods up and down the vehicle because it can run in two directions.
• The conveyor has a solid structure, is flexible and easy to maintain

Benefits of using a mobile lifting conveyor:

• The conveyor frame is designed with high-strength material, good resistance and works on many different types of terrain.
• The winch motor or hydraulic lift helps to transport many different product lines.
• Thanks to the winch system and hydraulic jack, goods can be transported flexibly and smoothly.
• The conveyor angle can be adjusted depending on the customer's needs.
• The conveyor surface is designed with many materials such as: rough, ribbed, etc. to increase product adhesion when transporting products with high slopes.
• Can transport many product lines with different weights.
• The conveyor can move flexibly in the factory thanks to the wheels, and stand firmly in one position when the wheels are locked.
• Stable operation, low power consumption, improving work efficiency and saving investment costs.

Popular types of lifting conveyors today

- Mobile lifting conveyors

• Equipped with wheels, allowing easy movement to different locations.
• Usually using hydraulic, pneumatic or mechanical lifting mechanisms.
• Flexible conveyor surface, can be belt or roller.

• High flexibility: Easy to move and adjust position, suitable for frequently changing working environments.
• Ease of use: Can adjust height quickly, does not require complex techniques.
• Space saving: Can be folded or moved when not in use.

• Load capacity is often lower than fixed types.
• Stability may be reduced when lifting goods that are too heavy.

- Butterfly lifting conveyor:

• With a folding design (butterfly shape), allowing flexible adjustment of the tilt angle or folding when not in use.
• Using a hydraulic lifting mechanism or servo motor.
• The surface is usually PVC or rubber belt with anti-slip ribs.

• Space saving: The folding design helps to fold the conveyor when not in use.
• Suitable for light goods: Optimized for cartons, packaging or small products.
• Easy to customize: The tilt angle and height can be changed quickly.

• Not suitable for goods that are too heavy or large in size.
• Maintenance costs may increase if the folding mechanism is damaged.

• Logistics: Loading/unloading containers onto/off small trucks.
• Food manufacturing: Transporting food packaging or packaged products.
• Retail: Moving goods in distribution centers.

- Hydraulic lifting conveyor

• Using a hydraulic cylinder system to raise or lower the conveyor frame, adjust the height or angle of inclination.
• The conveyor surface is usually rubber, PVC or roller belts, depending on the type of goods.
• Can withstand heavy loads, from several hundred kilograms to several tons.

• High load capacity: Suitable for heavy goods such as pallets, containers or building materials.
• Precise adjustment: Hydraulic system allows smooth lifting and easy height control.
• High durability: Stable operation in harsh environments such as dusty or humid.

• High investment and maintenance costs due to complex hydraulic systems.
• Requires large space for installation.

• Logistics: Loading and unloading containers or goods onto trucks.
• Construction: Transporting cement, sand or bricks to high altitudes.
• Industrial production: Moving heavy products in factories.
