Conveyor PU

Conveyor belts are used in almost all types of environments where any material has a requirement to be transported from one area to another. Across the industry, conveyor belts play an important role in the production and distribution of many products at one or more points in the process cycle. This type of PU conveyor belt has many outstanding features to suit different industries, especially the food processing industry.


What is PU Conveyor?

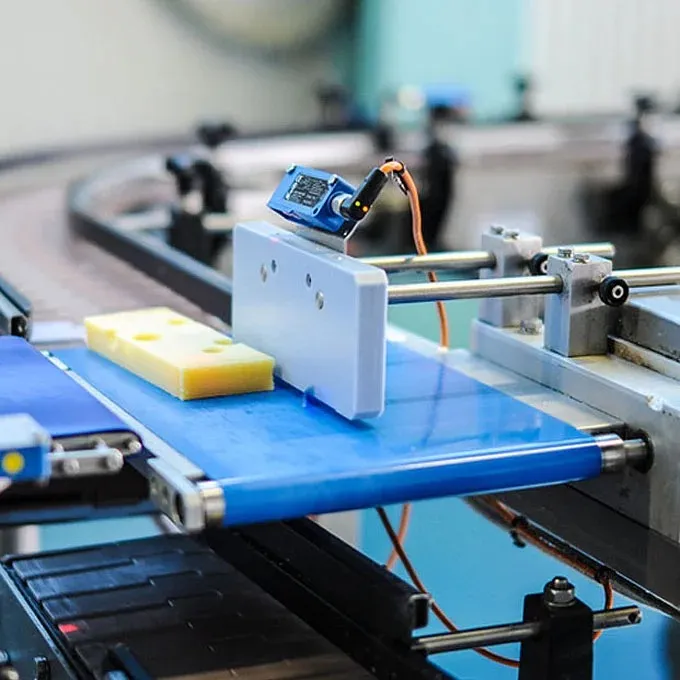

PU (Polyurethane) conveyor belts are designed with highly elastic materials and are highly durable and flexible. Therefore, PU conveyor belts are used by many businesses in production to help improve work efficiency. PU plastic conveyor belts are used to transport goods in the food processing, pharmaceutical, beverage, electronic component assembly industries, etc., bringing efficiency and meeting production needs. Let's find out with us the structure and benefits of using PU conveyor belts.

General structure of PU conveyor belt:



• The conveyor frame is designed with galvanized steel, stainless steel or aluminum profile.
• PU plastic conveyor belt uses colors according to application requirements
• The length, width and height dimensions depend on each product type
• Width: 300 ~ 2500mm
• Length: 2000 - 30000mm
• Height: 600 - 1200mm
• Genuine motor, ensuring safety and durable operation
• Controller: inverter, stop button, switch.



Advantages of using PU plastic conveyor belt:



• Temperature resistance: -40 ° C to +90 ° C.
• PU plastic belt has many colors suitable for each application, is made of two layers of fabric, which increases strength and durability, has good abrasion resistance and tear strength.
• Good resistance to grease, water, detergents and other liquids
• PU belts are known for their resistance to various chemicals such as solvents, oils, fats and acids.
• PU's tensile strength and durability are great
• The tight, non-stick surface makes it easy to clean and bacteria are difficult to penetrate
• It can meet food hygiene standards and can come into direct contact with food
• PU plastic conveyor belts are simply designed, have high durability, and good resistance.
• The conveyor belt has good compression resistance, is anti-elastic and anti-impact, and is anti-static
• It is easy to repair, maintain or clean the machine.
• The belt speed can be adjusted according to usage needs.
• Long-term use, saving costs for businesses



The best PU conveyor belts known to everyone

The characteristics of PU conveyor belts are wide and varied, all of which are tailored to the technical needs of the working environment. Therefore, there are many types of PU conveyor belts manufactured for industrial material handling applications. Here are some common types:


1 - PU ribbed conveyor belt

The ribbed PU conveyor belt is designed with many different tilt angles to help customers adjust to suit the needs of each product line. The ribbed conveyor surface helps increase friction, and is also designed with a barrier to prevent products from falling out during transportation.

* Structure of PU ribbed conveyor belt:

• Dimensions: W780xL2500xH(800-1200)
• Cargo tank size 800x800x600
• Conveyor barrier
• 3mm thick ribbed PU band
• Box steel conveyor frame legs
• 400W . motor
• Inverter
• Tilt angle adjustable feet

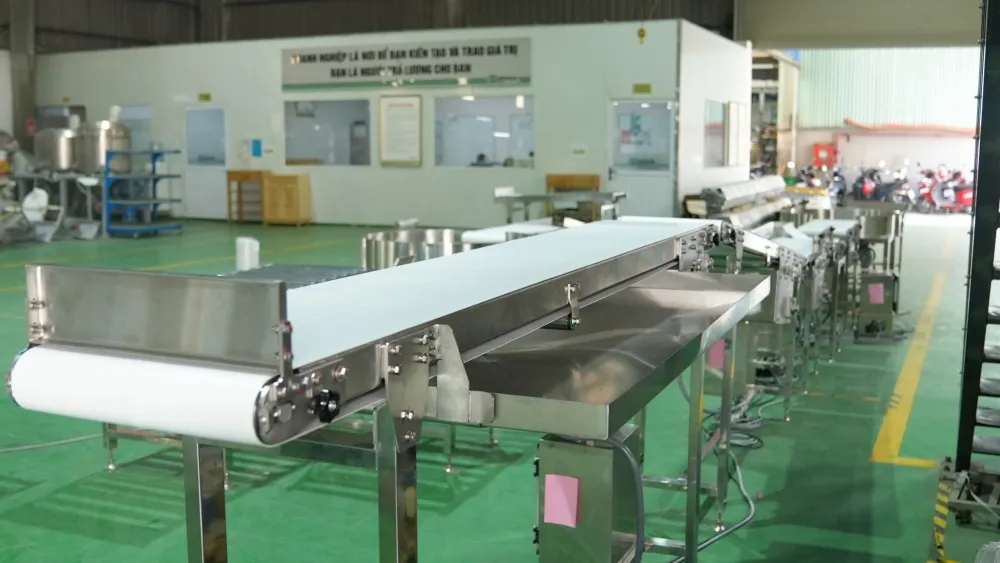

2 - Conveyor belt PU plastic stainless steel frame

Stainless steel frame PU plastic conveyor belt is applied in the food industry, transporting confectionery, canned goods, meats, vegetables and many other industries. The conveyor belt is designed with good oil resistance, non-stick conveyor surface and ensures food safety and hygiene. In particular, the conveyor frame is made of stainless steel material with high strength, anti-rust and the system can operate continuously for many hours.

* Structure  of stainless steel frame PU conveyor:

• Conveyor sizes are assembled on request
• Stainless steel conveyor frame 304 anti-rust, anti-abrasion
• White PU ribbon, smooth surface, 0.7 - 10mm thick (according to customer requirements)
• Geared motor, speed regulation inverter
• With adjustable feet



3 - Blue PU Conveyor

The green PU conveyor belt is designed with waterproof, good heat resistance and the tape has good elasticity, so it is chosen by many businesses. Galvanized steel conveyor frame, blue PU belt and control motor. With a solid design, high durability and long-term use, it is trusted by customers. Conveyor belts are widely used in the food industry, seafood processing, ..and many other production fields.

* Structure of green PU conveyor belt:

• Dimensions: W330xL4500xH700mm
• Blue PU ribbon
• 2.5mm thick steel conveyor frame with folding folding
• Box steel conveyor support frame
• Geared motor, electrical cabinet
• Inverter speed control

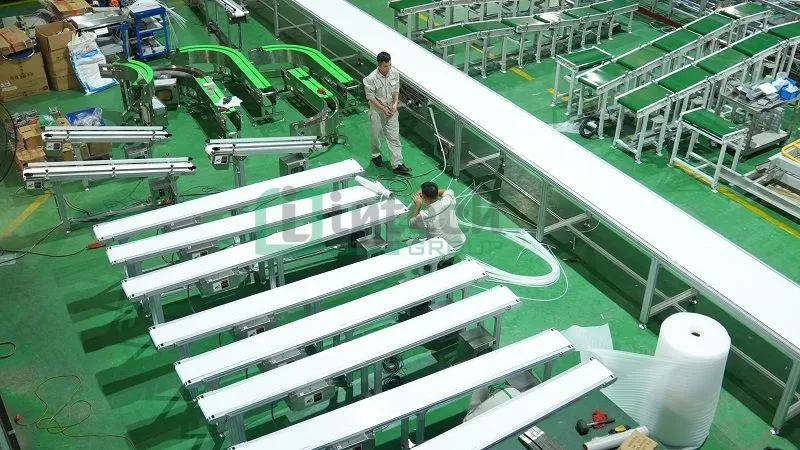

4 - White PU Conveyor

White PU conveyor belt manufactured with stainless steel conveyor frame has high strength and good resistance. White PU tape has good scratch resistance and adhesion resistance, especially designed with two side working tables to help workers easily produce. With simple design, easy to use but bring high economic efficiency for businesses.

* Structure of white PU conveyor belt:

• Dimensions: W1280xL5000xH700-1100
• Shoulder C folded 100x40x2t
• Motor 400W, VAC 220/380
• Korean LS inverter
• White PU ribbon
• Legs adjusted by boxes, jack feet
• W200 . side workbench



Quote the best PU conveyor belt

With outstanding advantages, PU conveyor belts are chosen by many manufacturers. Depending on the requirements of each customer, Intech Group will design products suitable for each production area, in order to meet the needs of customers. Send us your conveyor installation requirements, we will send you the most detailed PU conveyor quote for customers to have an effective investment strategy.
