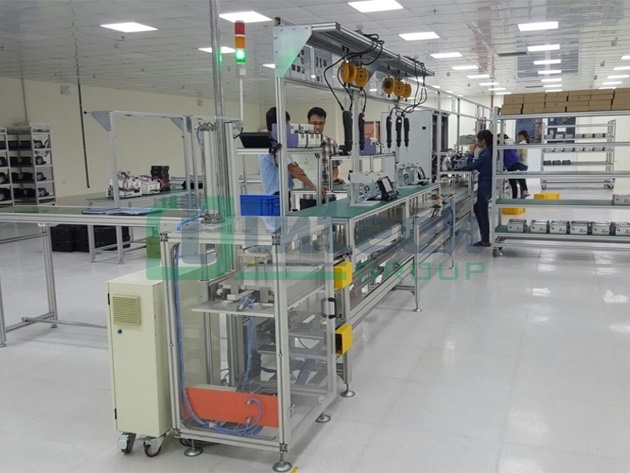

Pallet return conveyor line

What is Pallet Return Conveyor?

Pallet return conveyor is a conveyor belt designed with 2 floors to help rotate goods efficiently and quickly. This type of conveyor is used to fix bulk goods, nearly the same size, which need to be lifted or transported by vehicle or hoist.

Pallet return conveyor has a compact structure but brings high efficiency in transportation. Products will be placed on pallets when moving to each stage to recognize processing. This process takes place continuously to help speed up work efficiency.


Application of Pallet Return Conveyor

Used in auto parts assembly plants, making it easier to manipulate each stage. Thanks to continuous operation, this conveyor creates high work efficiency, shortening the time in each stage of installation.


Specifications of pallet return conveyor:



• Dimensions: L15000W640H700mm



Main plastic chain conveyor assembly:



• Profiled aluminum frame 40x40mm
• Aluminum pallet L400W350mm
• Folding stainless steel shoulder
• Pallet guides
• 0.75Kw motor, motor control cabinet: PLC, relay, inverter, power, ...
• SMC gas source system: Electronic valve, throttle, valve seat, filter, double silencer, ..
• Roller chain, roller bar, adjustable foot, sensor, Stopper SMC cylinder, ...
