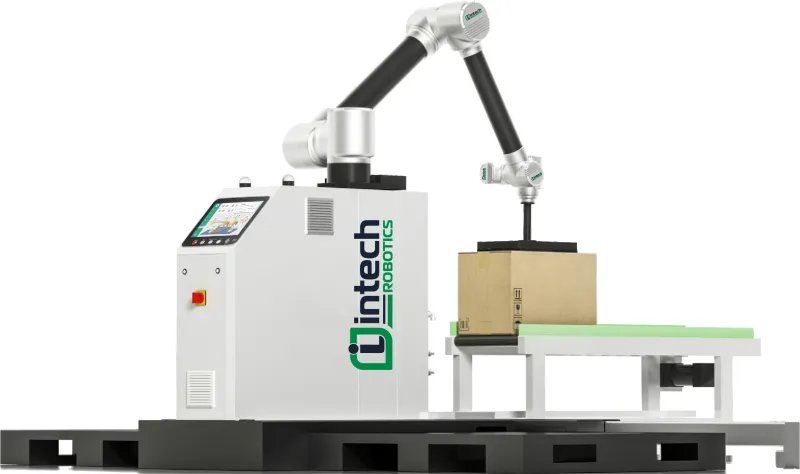

Robotic loading station

What is a loading robot station?

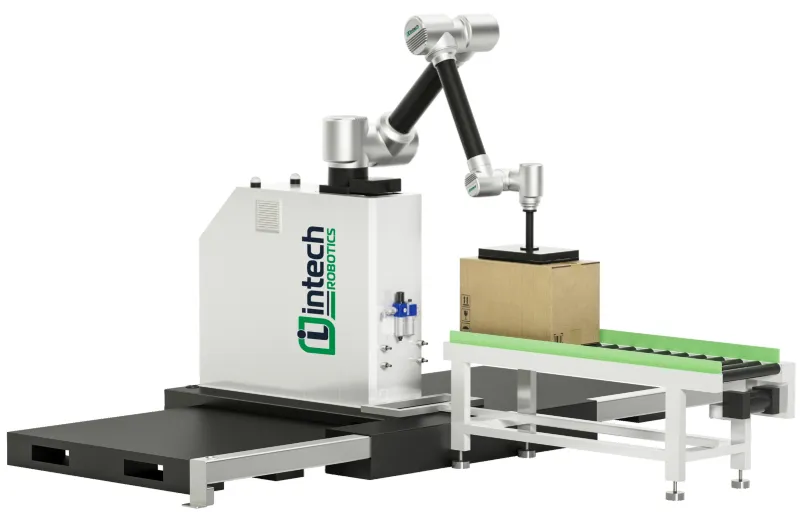

Basic structure of the automatic cargo handling robot station

• The central component, with a flexible robot arm with 6-7 degrees of freedom, designed to work safely with humans.
• Mounted on a mobile base, allowing flexible position adjustment.

• Is a solid base, where the robot arm is attached.
• The base frame is responsible for fixing the robot, ensuring that the robot operates stably, without shaking during the process of moving and lifting heavy objects.

• The end of the robot arm, using vacuum or clamp technology to hold the goods
• Flexible, can be changed to handle many different types of goods.

• This system helps to accurately determine the position of the pallet, ensuring that the robot places the packages in the right place on the pallet in a neat and tidy manner.
• Can include sensors or automatic adjustment mechanisms.

• A system to transport goods (cartons) to the loading and unloading position.
• Simple design, integrated with the robot to synchronize the process.

• This is an intuitive human-machine interface (HMI), displaying operating information and allowing programming or adjusting tasks.
• Bilingual support (Vietnamese, English), easy to use.

• Contains the power supply system and controller, manages the operation of the robot and other components.
• Ensures electrical safety and stable power supply.

Basic operating principle of automatic palletizing robot station

• Receiving products: Products (such as boxes, packaging) are transported to the robot station via a conveyor system. Sensors or cameras will determine the location, size and type of products. This information is sent to the robot's central controller.
• Programming and control: Based on the input information, the control software will calculate the optimal path for the robot arm. Operators can easily program or adjust the stacking diagram on the touch screen, ensuring that the packages are neatly and stably arranged on the pallet.

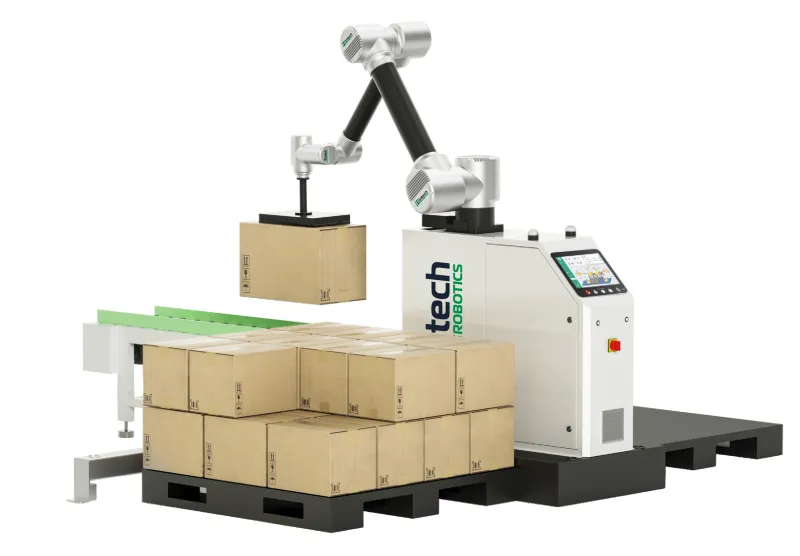

• Loading and unloading: The robot arm moves to the designated position, using a specialized gripper/suction unit to pick up the package. The robot moves and places the package on the pallet according to the programmed diagram. This process continues until the pallet is full.
• Complete and new cycle: When a pallet is full, the system will automatically move this pallet out of the work area. A new empty pallet will be placed in position, and the loading and unloading cycle will start again, ensuring that the production process is continuous and uninterrupted.

Technical parameters of the automatic palletizing robot station

• Load capacity: 12 kg
• Operating area: Up to 1900mm (corresponding to pallet size)
• Stack height: Maximum 2600mm
• Stack speed: Less than 12 products/minute
• Accuracy: High repeatability of positioning
• Power consumption: Maximum 3.3 kW
• Power source: Single phase, 220V/50Hz

Outstanding features of the automatic palletizing robot station

• Quick installation: The entire system can be installed in just 2 hours, and changing the palletizing program only takes 5 minutes, saving time and easy production changeover.
• Impressive working speed: The robot reaches a speed of 8-10 boxes per minute, ensuring high productivity and continuous process.
• Variety of stacking schemes: The system supports up to 800 different stacking schemes, allowing for the processing of a wide variety of products and stacking patterns.
• Simultaneous processing of two types of products: Robots can load and unload two types of products at the same time, compatible with large trays (1300mm x 1200mm).
• Automatic positioning: Robots automatically position and rotate product labels accurately, contributing to improving packaging quality and aesthetics.

Benefits of using robot loading and unloading stations

• Increased productivity and efficiency: Robots can work continuously 24/7 without rest, with much higher speed and accuracy than humans. This helps increase output, reduce production time and promptly meet large orders.
• Cost savings: Automation helps businesses reduce labor costs for heavy loading and unloading work, while minimizing errors and damage to goods, thereby saving repair or compensation costs.
• Ensure labor safety: Robotic loading stations eliminate the risk of injury to workers due to carrying heavy objects, performing repetitive movements or working in hazardous environments.
• Improve product quality: Robots perform operations consistently, helping goods to be neatly and securely arranged on pallets. This not only optimizes storage space but also minimizes damage during transportation.
• Increase flexibility: Robotic systems can be easily reprogrammed to handle different types of products or change the stacking scheme, helping businesses quickly adapt to new production requirements.



Applications of robot loading stations

• Food and beverage industry: Robots can quickly and hygienically load beer, soft drink, milk, or other food packaging onto pallets, minimizing the risk of product damage and ensuring hygiene and safety.
• Pharmaceutical and chemical industry: In environments requiring absolute precision and safety, robot loading stations help handle drug and chemical containers carefully, avoiding errors and leaks, protecting the health of workers.
• Logistics and warehousing industry: Robots help automate the end of the production process and the beginning of the supply chain, loading goods from conveyor belts onto pallets, optimizing storage space and speeding up order processing.
• Consumer goods manufacturing industry: Robots load cartons containing electronic products, household appliances, or other consumer goods, ensuring the packaging process is fast, accurate, and uniform.

Intech Group promotes automation with advanced loading and unloading robot station solution
