IT4420 Steel Frame Belt Conveyor
- Mã sản phẩm: IT4420
- Lượt xem: 548
IT4420 Steel Frame Belt Conveyor is a motor driven belt conveyor placed under the conveyor belt. This type of design is suitable for the need for a horizontal plane at the bottom of the conveyor belt.
Specifications:
Conveyor Size:![]()
Order code:
IT4220 – BL – CL – TW – α – (H1 – H2) – Loại belt (*)
Application range:
Specifications:
| General Specifications | Maximum load | 50 kg/m |
| Maximum load on conveyor | 500 kg | |
| Conveyor speed | 0.1 – 2.5 m/s (với 50 kg) | |
| Tilt / slope | ≤ 18° | |
| Ambient temperature | - 5 đến +40 °C | |
| Transmission | Voltage | 3 pha / 1 pha |
| Engine type | Gearbox motor | |
| Transmission type | Chain | |
| Material | Belt | Belt PVC, PU, ribbed, smooth, rough.... |
| Vai | Galvanized steel, painted steel, stainless steel, 2mm thick |

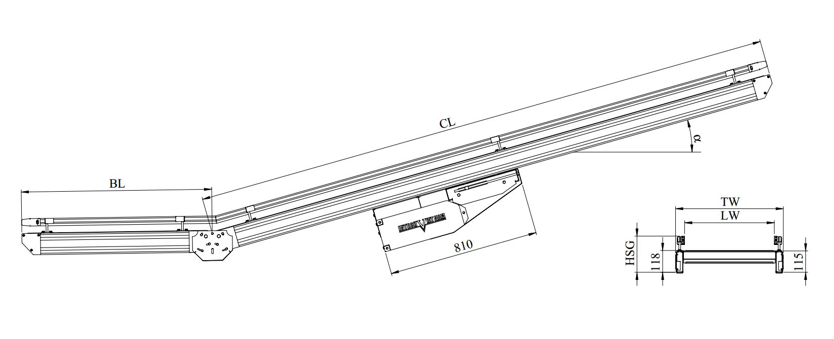

Conveyor Size:
IT4220 – BL – CL – TW – α – (H1 – H2) – Loại belt (*)
- H1- H2: The height of the two conveyor heads from the blet to the floor.
- (*) See catalog for belt selection.
| BF | Belt width | 420, 620, 840 mm (hoặc theo yêu cầu khách hàng) |
| LW | Guard / guide distance | BF (+120/-90 mm) có thể tùy chỉnh |
| CL | Length of inclined conveyor section | ≥ 1500 mm |
| BL | Horizontal conveyor section length | ≥ 500 |
| TW | Conveyor Width | BF + 70 |
| HSG | Conveyor height (without legs) | 155-195 mm |
| α | Tilt / slope angle | 6°/9°/12°/15°/18° |
Application range:
- Long conveyor belts are usually divided into standard segments (ML = 2000mm / 3000mm) and non-standard segments. Easy to assemble and transport,
- Products: cartons, bags, pallets, bulk products, granules, food…
