IT4310 Curved Belt Conveyor
- Mã sản phẩm: IT4310
- Lượt xem: 676
- The IT4310 curved belt conveyor is a curved belt conveyor with different angles for easy and flexible product redirection.
- Use tapered rollers to drive the belt without shifting during use.
Specifications:
| General Specifications | Local Load Max | 50 kg/m |
| Conveyor load Max | 100 kg | |
| Conveyor speed | 0.1 – 2.5 m/s (với 50 kg) | |
| Incline / Slope | Not suitable | |
| Ambient temperature | - 5 đến +40 °C | |
| Transmission | Voltage | 3 pha / 1 pha |
| Engine type | Gearbox motor | |
| Transmission type | Direct / Chain | |
| Material | Belt | Belt PVC, PU, ribbed, smooth, rough.... |
| Vai | Galvanized steel, painted steel, stainless steel, 2mm thick |

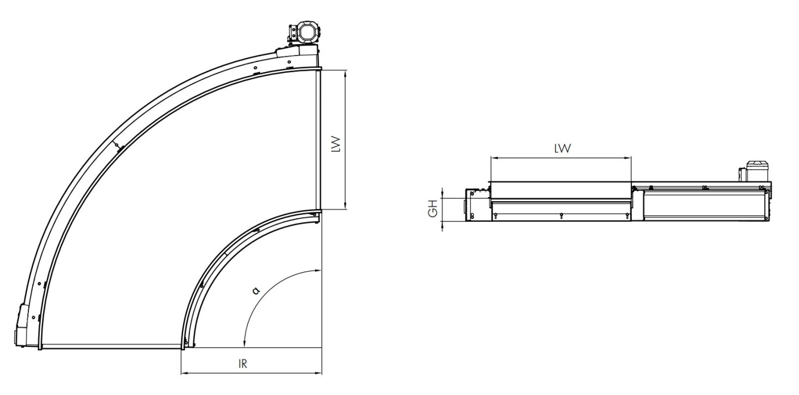

Conveyor Size:
IT4310 – LW – IR – α – Loại belt (*)
- (*) See also the catalog for the selection of rollers.
| LW | Conveyor shoulder width | 420, 620, 840, 1050mm (hoặc theo yêu cầu khách hàng) |
| IR | Small corner radius | 800 mm (1200 mm khi α = 30°) |
| α | Angle | 30°/45°/60°/90°/120°/180° |
| GH | Conveyor section height | 160 mm |
Application range:
- Conveyor belts are divided into standard segments ( α = 30°/45°/60°/90°/120°/180°). Easy to assemble and transport,
- Products: cartons, bags, pallets…
